Part number: SSM2250
Manufacturer: Analog Devices (https://www.analog.com/)
File Size: 275.24KB
Download: 📄 Datasheet

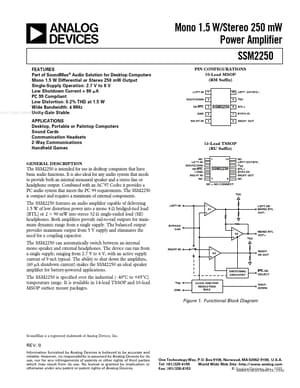

Description: Mono 1.5 W/Stereo 250 mW Power Amplifier
Part of SoundMax® Audio Solution for Desktop Computers Mono 1.5 W Differential or Stereo 250 mW Output Single-Supply Operation: 2.7 V to 6 V Low Shutdown Current = 60 A.
Desktop, Portable or Palmtop Computers Sound Cards Communication Headsets 2-Way Communications Handheld Games
Mono 1.5 .
The SSM2250 is intended for use in desktop computers that have basic audio functions. It is also ideal for any audio system that needs to provide both an internal monaural speaker and a stereo line or headphone output. Combined with an AC’97 Codec i.
Image gallery
