TMP03 Datasheet - Analog Devices

TMP03 Serial Digital Output Thermometers

The TMP03/TMP04 are monolithic temperature detectors that generate a modulated serial digital output that varies in direct proportion to the temperature of the device. An onboard sensor generates a voltage precisely proportional to absolute temperature which is compared to an internal voltage refere.

TMP03 Features

* Low Cost 3-Pin Package Modulated Serial Digital Output Proportional to Temperature ؎1.5؇C Accuracy (typ) from

* 25؇C to +100؇C Specified

* 40؇C to +100؇C, Operation to 150؇C Power Consumption 6.5 mW Max at 5 V Flexible Open-Collector Output on TMP03 CMOS/TTL-Compatible Output on TMP04

TMP03_AnalogDevices.pdf

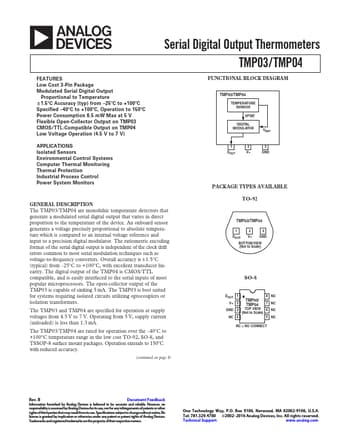

Preview of TMP03 PDF
TMP03 Datasheet Preview Page 2 TMP03 Datasheet Preview Page 3

Datasheet Details

Part number:

TMP03

Manufacturer:

Analog Devices ↗

File Size:

308.83 KB

Description:

Serial digital output thermometers.
