TMP007

Infrared Thermopile Sensor

TMP007 Features

* 1 Integrated MEMS Thermopile for Noncontact Temperature Sensing

* 14-Bit Local Temperature Sensor for Cold Junction Reference

* ±1°C (max) from 0°C to +60°C

* ±1.5°C (max) from

* 40°C to +125°C

* Integrated Math Engine

* Directly Read Object Te

TMP007 General Description

The TMP007 is a fully-integrated microelectromechanical system (MEMS) thermopile sensor that measures the temperature of an object without direct contact. The thermopile absorbs passive infrared energy from an object at wavelengths between 4 um to 16 um within the end-user defined field of view. The.

TMP007 Datasheet (1.28 MB)

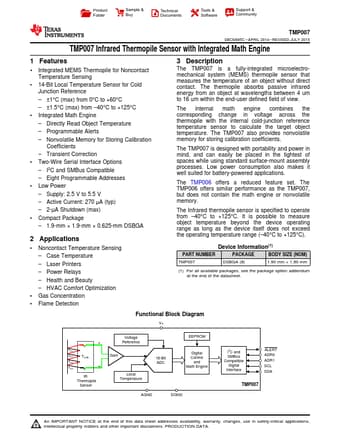

Preview of TMP007 PDF

Datasheet Details

Part number:

TMP007

Manufacturer:

Texas Instruments ↗

File Size:

1.28 MB

Description:

Infrared thermopile sensor.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TMP007 SBOS685C

* APRIL 2014

* REVISED JULY .
