AIC1518

Dual USB High-Side Power Switch

AIC1518 Features

* 110mΩ (5V Input) High-Side MOSFET Switch. 1A Continuous Load Current per Channel. 110µA Typical On-State Supply Current. 1µA Typical Off-State Supply Current. Current-Limit / Short Circuit Protection. Fault Flag with 3ms filter eliminates false assertions. (1518D) Thermal Shutdown Protecti

AIC1518 General Description

The AIC1518 is a dual high-side power switch for self-powered and bus-powered Universal Serial Bus (USB) applications. Both high-side switches are MOSFET with 110m Ω RDS(ON), which meets USB voltage drop requirements for maximum transmission wire length. Multi-purpose open-drain fault flag output in.

AIC1518 Datasheet (208.90 KB)

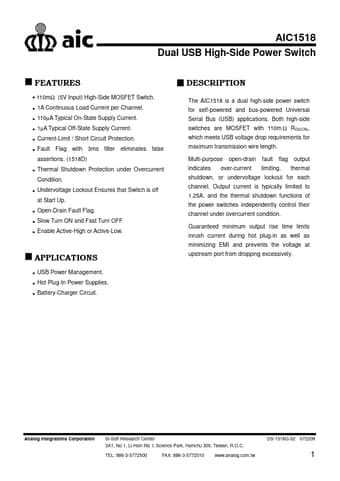

Preview of AIC1518 PDF

Datasheet Details

Part number:

AIC1518

Manufacturer:

Analog Intergrations Corporation

File Size:

208.90 KB

Description:

Dual usb high-side power switch.
