AIC3415 Datasheet - Analog Intergrations Corporation

AIC3415 1.2MHz Synchronous Step-Up Converter

* VIN Start Up Voltage: 0.9V * Output Voltage Range: from 2.7V to 5.25V. * Up to 94% Efficiency * 1.2MHz Fixed Frequency Switching * Built-in current mode compensation * Built-in Protection: Over Current, Over Voltage, Over Temperature * Optional Automatic PWM/PSM Versio.

AIC3415-AnalogIntergrationsCorporation.pdf

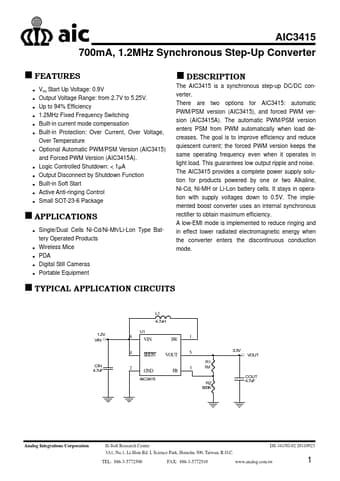

Preview of AIC3415 PDF
AIC3415 Datasheet Preview Page 2 AIC3415 Datasheet Preview Page 3

Datasheet Details

Part number:

AIC3415

Manufacturer:

Analog Intergrations Corporation

File Size:

249.37 KB

Description:

1.2mhz synchronous step-up converter.
