AIC3643 Datasheet, Converter, Analog Integrations

AIC3643 Features

  • Converter Built-In Open Circuit Protection Over Voltage Protection Efficiency Up to 83% at VIN=4.2V, 3LEDs, ILED=20mA 1.2MHz Fixed Switching Frequency Drives Up to 5LEDs in series 2.5V to 5.5V In

PDF File Details

Part number:

AIC3643

Manufacturer:

Analog Integrations

File Size:

326.66kb

Download:

📄 Datasheet

Description:

Built-in ovp white led step-up converter. AIC3643 is a current-mode pulse-widthmodulation (PWM), step-up DC/DC converter designed to drive white LEDs with a constant current t

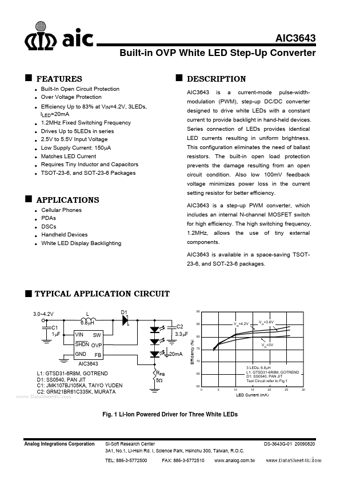

Datasheet Preview: AIC3643 📥 Download PDF (326.66kb)
Page 2 of AIC3643 Page 3 of AIC3643

AIC3643 Application

  • Applications Cellular Phones PDAs DSCs Handheld Devices White LED Display Backlighting TYPICAL APPLICATION CIRCUIT 3.0~4.2V C1 1μF L 6.8μH VIN SW D
