AIC1720 Datasheet, regulator equivalent, Analog Integrations

AIC1720 Features

• Regulator Low Dropout Voltage of 130mV at 30mA Output Current (5V Output Version). Guaranteed 100mA Output Current. Internal P-MOSFET Draws no Base Current. Low Ground Current. Output Voltage of

PDF File Details

Part number:

AIC1720

Manufacturer:

Analog Integrations

File Size:

171.07kb

Download:

📄 Datasheet

Description:

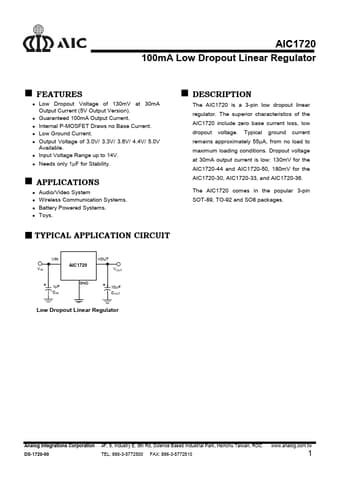

100ma low dropout linear regulator. The AIC1720 is a 3-pin low dropout linear regulator. The superior characteristics of the AIC1720 include zero base current loss, low

AIC1720 Application

• Applications Audio/Video System Wireless Communication Systems. Battery Powered Systems. Toys. TYPICAL APPLICATION CIRCUIT VIN VIN AIC1720 VOUT V
