AIC1722A - 300mA Low Dropout Linear Regulator

The AIC1722A is a 3-pin low dropout linear regulator.

The superior characteristics of the AIC1722A include zero base current loss, very low dropout voltage, and 2% accuracy output voltage.

Typical ground current remains approximately 55µA, from no load to maximum loading conditions.

Dropout voltage

AIC1722A Features

* Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version). Guaranteed 300mA Output Current. Maximum Input Voltage is 8V Low Ground Current at 55µA. 2% Accuracy Output Voltage of 1.8V/ 2.0V /2.5V /2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V. Needs only 1µF for Stability. Current a

AIC1722A_AnalogIntergrationsCorporation.pdf

Preview of AIC1722A PDF

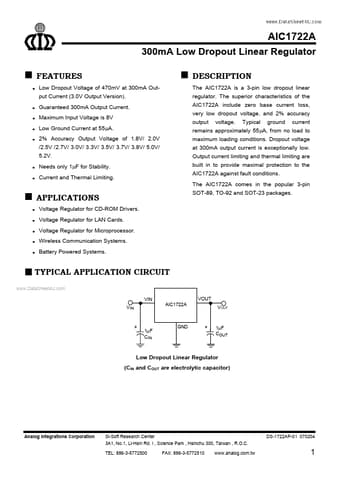

AIC1722A Datasheet Preview Page 2 AIC1722A Datasheet Preview Page 3

Datasheet Details

Part number:

AIC1722A

Manufacturer:

Analog Intergrations Corporation

File Size:

429.32 KB

Description:

300ma low dropout linear regulator.
