AIC1742 - 150mA Linear Regulator

Datasheet Summary

Description

AIC1742 is a low noise, low dropout linear regulator, and is housed in a small SOT-23-5 package.

The device is in the “ON” state when the SHDN pin is set to logic high level.

A low dropout voltage of 90mV at 50mA load current is performed.

Features

  • Very Low Noise, 25μVRMS @ f=10~100kHz. Very Low Quiescent Current, 35μA. Very Low Dropout Voltage, 90mV @ 50mA. Active Low Shutdown Control. Short Circuit and Thermal Protection. 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 2.85V, 2.9V, 3.0V, 3.3V Output Voltage. Available in ±2% Output Tolerance. Low Profile Package: SOT-23-5.

📥 Download Datasheet

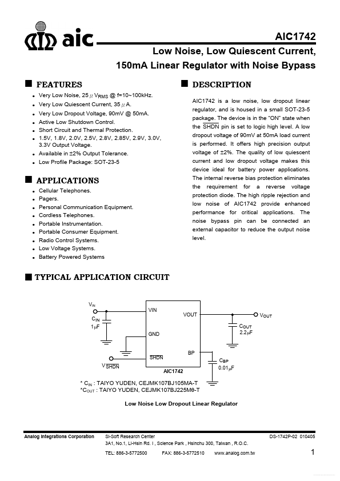

Datasheet preview – AIC1742

Datasheet Details

Part number AIC1742
Manufacturer aic
File Size 639.46 KB
Description 150mA Linear Regulator
Datasheet download datasheet AIC1742 Datasheet
Additional preview pages of the AIC1742 datasheet.

📁 Similar Datasheet

  • AIC1740 - Low Output Voltage/ 500mA Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1741 - LOW DROPOUT ADJUSTABLE REGULATOR (Analog Intergrations Corporation)
  • AIC1746 - 150mA Linear Regulator (Analog Intergrations Corporation)
  • AIC1748 - 600mA Linear Regulator (Analog Intergrations Corporation)
  • AIC1702 - Ultra Low Quiescent Curent LDO Voltage Regulator (Analog Intergrations Corporation)
  • AIC1714 - Negative Voltage Regulator (Analog Intergrations Corporation)
  • AIC1720 - 100mA Low Dropout Linear Regulator (Analog Integrations)
  • AIC1721 - 3-pin Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1721D - 3-pin Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1722 - 300mA Low Dropout Linear Regulator (Analog Integrations)
Other Datasheets by aic
  • AIC1747 - 300mA Linear Regulator
  • AIC1734 - 300mA Low Dropout Linear Regulator
  • AIC1735 - Low Dropout Linear Regulator
  • AIC1221 - Ultra LDO 2A Linear Regulator
  • AIC1531 - 500mA Dual Linear Regulator
  • AIC1532 - 500mA DUAL REGULATOR
  • AIC1630A - HIGH-EFFICIENCY STEP-UP DC/DC CONVERTER CONTROLLER
  • AIC1634 - 1.4MHz Current-Mode Step-Up DC/DC Converter

Full PDF Text Transcription

Click to expand full text
AIC1742 Low Noise, Low Quiescent Current, 150mA Linear Regulator with Noise Bypass FEATURES Very Low Noise, 25μVRMS @ f=10~100kHz. Very Low Quiescent Current, 35μA. Very Low Dropout Voltage, 90mV @ 50mA. Active Low Shutdown Control. Short Circuit and Thermal Protection. 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 2.85V, 2.9V, 3.0V, 3.3V Output Voltage. Available in ±2% Output Tolerance. Low Profile Package: SOT-23-5 DESCRIPTION AIC1742 is a low noise, low dropout linear regulator, and is housed in a small SOT-23-5 package. The device is in the “ON” state when the SHDN pin is set to logic high level. A low dropout voltage of 90mV at 50mA load current is performed. It offers high precision output voltage of ±2%.
