AIC1747 - 300mA Linear Regulator

Datasheet Summary

Description

AIC1747 is optimized for low ESR ceramic capacitor operation with 300mA continuous current.

The AIC1747 is designed for portable RF and wireless applications with demanding performance and space requirements.

The AIC1747 offers high precision output voltage of ±2% tolerance.

Features

  • Guarantee 300mA Output Current. Fast Response in Line/Load Transient Wide Operating Voltage Ranges: 2.0V to 5.5V. 0.01 A Shutdown Standby Current Low Quiescent Current 80µA. Output Voltage is available within 1.1~4.2V Low Dropout 270mV at 300mA PSRR 60dB at 1kHz. Active High Shutdown Control. Fixed: 1.1, 1.2, 1.3, 1.5, 1.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.5, 3.7, 3.8 Output Voltage. Current Limit and Thermal Protection. Available in ±2% Output Tolerance. Available in 3 & 5 lead of SOT-23, TSOT2.

📥 Download Datasheet

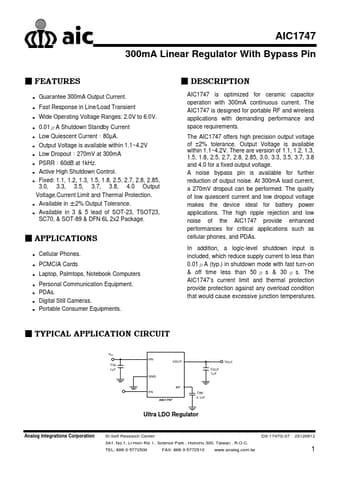

Datasheet preview – AIC1747

Datasheet Details

Part number AIC1747
Manufacturer aic
File Size 340.40 KB
Description 300mA Linear Regulator
Datasheet download datasheet AIC1747 Datasheet
Additional preview pages of the AIC1747 datasheet.

📁 Similar Datasheet

  • AIC1740 - Low Output Voltage/ 500mA Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1741 - LOW DROPOUT ADJUSTABLE REGULATOR (Analog Intergrations Corporation)
  • AIC1746 - 150mA Linear Regulator (Analog Intergrations Corporation)
  • AIC1748 - 600mA Linear Regulator (Analog Intergrations Corporation)
  • AIC1702 - Ultra Low Quiescent Curent LDO Voltage Regulator (Analog Intergrations Corporation)
  • AIC1714 - Negative Voltage Regulator (Analog Intergrations Corporation)
  • AIC1720 - 100mA Low Dropout Linear Regulator (Analog Integrations)
  • AIC1721 - 3-pin Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1721D - 3-pin Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1722 - 300mA Low Dropout Linear Regulator (Analog Integrations)
Other Datasheets by aic
  • AIC1742 - 150mA Linear Regulator
  • AIC1734 - 300mA Low Dropout Linear Regulator
  • AIC1735 - Low Dropout Linear Regulator
  • AIC1221 - Ultra LDO 2A Linear Regulator
  • AIC1531 - 500mA Dual Linear Regulator
  • AIC1532 - 500mA DUAL REGULATOR
  • AIC1630A - HIGH-EFFICIENCY STEP-UP DC/DC CONVERTER CONTROLLER
  • AIC1634 - 1.4MHz Current-Mode Step-Up DC/DC Converter

Full PDF Text Transcription

Click to expand full text
AIC1747 300mA Linear Regulator With Bypass Pin FEATURES Guarantee 300mA Output Current. Fast Response in Line/Load Transient Wide Operating Voltage Ranges: 2.0V to 5.5V. 0.01 A Shutdown Standby Current Low Quiescent Current 80µA. Output Voltage is available within 1.1~4.2V Low Dropout 270mV at 300mA PSRR 60dB at 1kHz. Active High Shutdown Control. Fixed: 1.1, 1.2, 1.3, 1.5, 1.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.5, 3.7, 3.8 Output Voltage. Current Limit and Thermal Protection. Available in ±2% Output Tolerance. Available in 3 & 5 lead of SOT-23, TSOT23, SC70, & SOT-89 & DFN 6L 2x2 Package. DESCRIPTION AIC1747 is optimized for low ESR ceramic capacitor operation with 300mA continuous current.
