AIC1741

LOW DROPOUT ADJUSTABLE REGULATOR

AIC1741 Features

* 1% Accuracy 1.235V Voltage Reference. Fast Transient Response. Low Ground Current at 55µA. Wide Output Current Range, 10µA~80mA. Output Programmable from 1.235V~11V. Low Temperature Coefficiency. Error Flag Warns of Output Dropout. DESCRIPTION The AIC1741 is a low power precision adjustable regulat

AIC1741 General Description

The AIC1741 is a low power precision adjustable regulator with 80mA output capability. The device can be used as a secondary regular to provide feedback in a switching power supply. The AIC1741 circuitry includes an internal wide band amplifier, a precision bandgap reference, and a PMOS output trans.

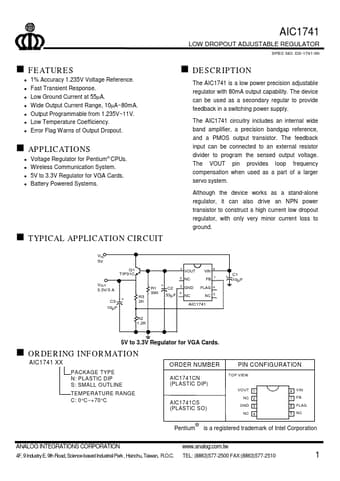

AIC1741 Datasheet (77.89 KB)

Preview of AIC1741 PDF

Datasheet Details

Part number:

AIC1741

Manufacturer:

Analog Intergrations Corporation

File Size:

77.89 KB

Description:

Low dropout adjustable regulator.
