AIC1723 - 500mA Low Dropout Linear Regulator

AIC1723 Description

AIC1723 500mA Low Dropout Linear Regulator .
The AIC1723 is a 3-pin low dropout linear regulator.

AIC1723 Features

* Low Dropout Voltage of 750mV at 500mA Output Current (5.0V Output Version). Guaranteed 500mA Output Current. Internal 1.5Ω P-MOSFET Draws no Base Current. Low Ground Current at 65µA. 2% Accuracy Output Voltage of 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V. Input Voltage Range up to 12V (5.0V Output Version)

AIC1723 Applications

* Voltage Regulator for CD-ROM Drivers. Voltage Regulator for LAN Cards. Voltage Regulator for Monitor Microprocessor. Voltage Regulator for RAM Module. Wireless Communication Systems. Battery Powered Systems. TYPICAL APPLICATION CIRCUIT VIN VIN AIC1723 VOUT VOUT + 1µF CIN GND + 10µF COUT Low

📥 Download Datasheet

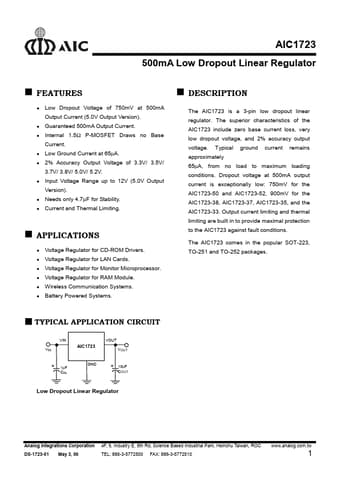

Preview of AIC1723 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AIC1723
Manufacturer
Analog Integrations
File Size
212.86 KB
Datasheet
AIC1723-AnalogIntegrations.pdf
Description
500mA Low Dropout Linear Regulator
