AIC1723A Datasheet - Analog Intergrations Corporation

500mA Low Dropout Linear Regulator

AIC1723A Features

* Low Dropout Voltage of 650mV at 500mA Output Current (3V Output Version). Guaranteed 500mA Output Current. Maximum Input Voltage is 8V Low Ground Current at 65µA. 2% Accuracy Output Voltage of 1.8V/ 2.0V /2.5V /2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V. Only needs 4.7µF Output Capacitor for Sta

AIC1723A General Description

The AIC1723A is a 3-pin low dropout linear regulator. The superior characteristics of the AIC1723A include zero base current loss, very low dropout voltage, and 2% accuracy output voltage. Typical ground current remains approximately 65 µ A, for loading ranging from zero to maximum. Dropout voltage .

AIC1723A Datasheet (491.22 KB)

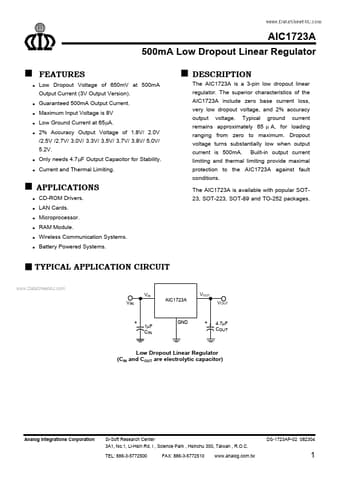

AIC1723A Datasheet Preview — Preview of AIC1723A PDF

Datasheet Details

Part number:

AIC1723A

Manufacturer:

Analog Intergrations Corporation

File Size:

491.22 KB

Description:

500ma low dropout linear regulator.
