AIC1722 - 300mA Low Dropout Linear Regulator

Datasheet Summary

Description

The AIC1722 is a 3-pin low dropout linear regulator.

The superior characteristics of the AIC1722 include zero base current loss, very low dropout voltage, and 2% accuracy output voltage.

Typical ground current remains approximately 55µA, from no load to maximum loading conditions.

Features

  • Low Dropout Voltage of 130mV at 100mA Output Current (5.2V Output Version). Guaranteed 300mA Output Current. Internal 1.3Ω P-MOSFET Draws no Base Current. Low Ground Current at 55µA. 2% Accuracy Output Voltage of 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V. Input Voltage Range up to 12V. Needs only 1µF for Stability. Current and Thermal Limiting.

📥 Download Datasheet

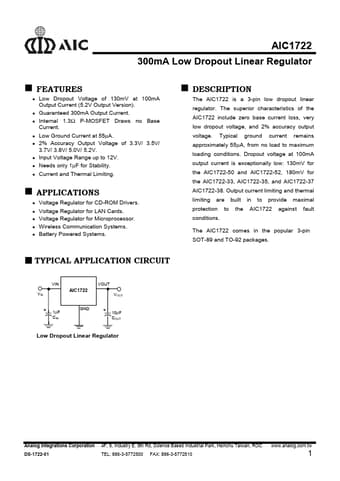

Datasheet preview – AIC1722

Datasheet Details

Part number AIC1722
Manufacturer Analog Integrations
File Size 200.17 KB
Description 300mA Low Dropout Linear Regulator
Datasheet download datasheet AIC1722 Datasheet
Additional preview pages of the AIC1722 datasheet.

📁 Similar Datasheet

  • AIC1722A - 300mA Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1721 - 3-pin Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1721D - 3-pin Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1723A - 500mA Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1727 - 50mA Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1702 - Ultra Low Quiescent Curent LDO Voltage Regulator (Analog Intergrations Corporation)
  • AIC1714 - Negative Voltage Regulator (Analog Intergrations Corporation)
  • AIC1731 - Low Dropout Linear Regulator (Analog Intergrations Corporation)
  • AIC1732 - 800mA Low Dropout Positive Adjustable Regulator (Analog Intergrations Corporation)
  • AIC1734 - 300mA Low Dropout Linear Regulator (AIC)
Other Datasheets by Analog Integrations
  • AIC1720 - 100mA Low Dropout Linear Regulator
  • AIC1723 - 500mA Low Dropout Linear Regulator
  • AIC1730 - 150mA Linear Regulator
  • AIC1761 - BATTERY CHARGE CONTROLLER
  • AIC1766 - BATTERY CHARGE CONTROLLER
  • AIC1084 - 5A Low Dropout Positive Adjustable Regulator
  • AIC1845 - Regulated 5V Charge Pump In SOT-23
  • AIC1848 - Regulated 5V Charge Pump In SOT-23

Full PDF Text Transcription

Click to expand full text
AIC1722 300mA Low Dropout Linear Regulator FEATURES Low Dropout Voltage of 130mV at 100mA Output Current (5.2V Output Version). Guaranteed 300mA Output Current. Internal 1.3Ω P-MOSFET Draws no Base Current. Low Ground Current at 55µA. 2% Accuracy Output Voltage of 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V. Input Voltage Range up to 12V. Needs only 1µF for Stability. Current and Thermal Limiting. APPLICATIONS Voltage Regulator for CD-ROM Drivers. Voltage Regulator for LAN Cards. Voltage Regulator for Microprocessor. Wireless Communication Systems. Battery Powered Systems. TYPICAL APPLICATION CIRCUIT VIN VIN AIC1722 VOUT VOUT + 1µF CIN GND + 10µF COUT Low Dropout Linear Regulator DESCRIPTION The AIC1722 is a 3-pin low dropout linear regulator.
