AIC1730 Datasheet - Analog Integrations

AIC1730 - 150mA Linear Regulator

The AIC1730 is a low noise, low dropout linear regulator, housed in a small SOT-23-5 & SOT-236W package.

The device is in the “ON” state when the SHDN pin is set to a logic high level.

An internal P-MOSFET pass transistor is used to achieve a low dropout voltage of 90mV at 50mA load current.

It offe

AIC1730 Features

* l Available in ±2% Output Tolerance. l 1.8V to 3.3V Output Voltage with 0.1V Increment. l Active Low Shutdown Control. l Very Low Quiescent Current. l Very Low Dropout Voltage. l Miniature Package (SOT-23-5 & SOT-23-6W) l Short Circuit and Thermal Protection. l Very Low Noise. n APPLICATIONS l Cellu

AIC1730-AnalogIntegrations.pdf

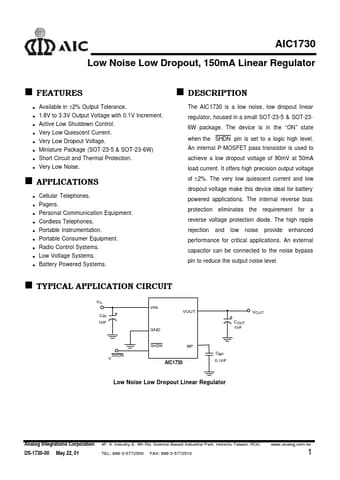

Preview of AIC1730 PDF
AIC1730 Datasheet Preview Page 2 AIC1730 Datasheet Preview Page 3

Datasheet Details

Part number:

AIC1730

Manufacturer:

Analog Integrations

File Size:

213.88 KB

Description:

150ma linear regulator.
