AIC1702

Ultra Low Quiescent Curent LDO Voltage Regulator

AIC1702 Features

* Input Voltage 2.0V~6.8V

* Output Voltage 0.8V~5.0V

* 550mV Typical Dropout Voltage at 350mA load current and 3.3V output voltage

* Ultra Low Quiescent Current: 3μA

* Line Regulation, typical: 2mV

* Load Regulation, typical: 2mV

* Current Limiting and Thermal Protection

AIC1702 General Description

The AIC1702 is an Ultra Low Quiescent Current, low dropout voltage regulator. The output voltages are of 0.8V, 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.0V, 3.3V and 5V. Dropout voltage of 200mV is guaranteed at 350mA output current and 3.3V output voltage. The low quiescent and wide input voltage range.

AIC1702 Datasheet (690.82 KB)

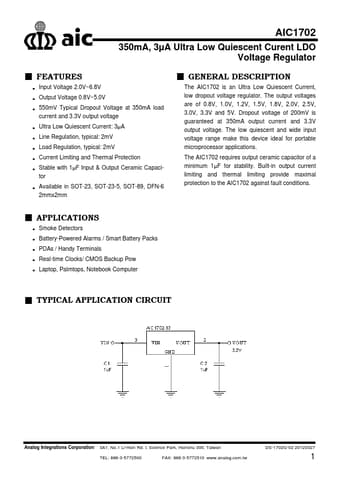

Preview of AIC1702 PDF

Datasheet Details

Part number:

AIC1702

Manufacturer:

Analog Intergrations Corporation

File Size:

690.82 KB

Description:

Ultra low quiescent curent ldo voltage regulator.
