AIC1748

600mA Linear Regulator

AIC1748 Features

* DESCRIPTION

* Guarantee 600mA Output Current.

* Fast Response in Line/Load Transient.

* Wide Operating Voltage Ranges: 2.3V to 6.0V.

AIC1748 General Description


* Guarantee 600mA Output Current.
* Fast Response in Line/Load Transient.
* Wide Operating Voltage Ranges: 2.3V to 6.0V.
* <0.01μA Shutdown Standby Current.
* Low Quiescent Current:<100µA.
* Fixed: 0.8V, 1.2V, 1.8V, 2.5V, 2.85V, 3.3V , 4.0V Output Voltage.
* Adjustable O.

AIC1748 Datasheet (378.40 KB)

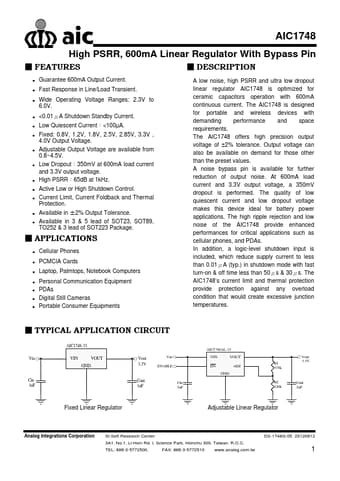

Preview of AIC1748 PDF

Datasheet Details

Part number:

AIC1748

Manufacturer:

Analog Intergrations Corporation

File Size:

378.40 KB

Description:

600ma linear regulator.
