AM402 - CURRENT CONVERTER

AM402 Description

DataSheet.in CURRENT CONVERTER IC .
AM402 is a monolithically integrated current converter which has been specially developed for the processing of differential bridge signals.

AM402 Features

* Wide Supply Voltage Range: 635V
* Wide Operating Temperature Range:
* 40°C+85°C
* Adjustable Reference Voltage Source: 4.5 to 10V
* Wide Common Mode Range Instrumentation Amplifier
* Adjustable Gain and Offset
* Two
* Wire Output: 420mA

AM402 Applications

* and has four function blocks. A high-precision instrumentation amplifier (IA) serves as an input stage. A reference voltage source, which can be adjusted to values of between 4.5 and 10V, excites external components and a voltage-controlled current output stage converts the voltage signal. It is thu

📥 Download Datasheet

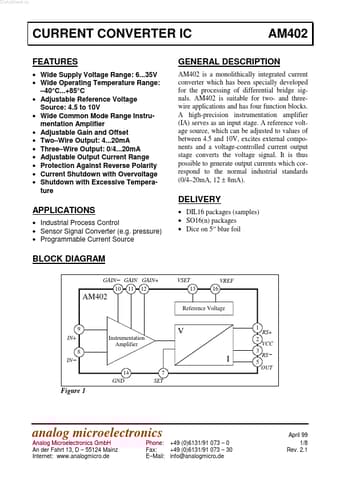

Preview of AM402 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM402
Manufacturer
Analog Microelectronics
File Size
136.32 KB
Datasheet
AM402_AnalogMicroelectronics.pdf
Description
CURRENT CONVERTER
