Datasheet Details
- Part number
- AM400N04-01B
- Manufacturer
- Analog Power
- File Size
- 384.57 KB
- Datasheet
- AM400N04-01B-AnalogPower.pdf
- Description
- N-Channel MOSFET

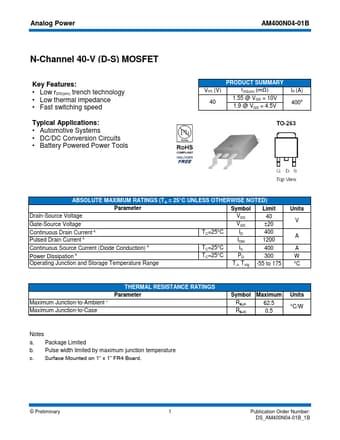

AM400N04-01B Description
Analog Power N-Channel 40-V (D-S) MOSFET Key .
AM400N04-01B Features
* Low rDS(on) trench technology
* Low thermal impedance
AM400N04-01B Applications
* Automotive Systems
* DC/DC Conversion Circuits
* Battery Powered Power Tools
AM400N04-01B
VDS (V) 40
PRODUCT SUMMARY rDS(on) (mΩ)
1.55 @ VGS = 10V 1.9 @ VGS = 4.5V
ID (A) 400a
ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED)
Parameter
Symbol Limit
Drain-
