AMS5612 Calibrated and temperature compensated pressure sensor

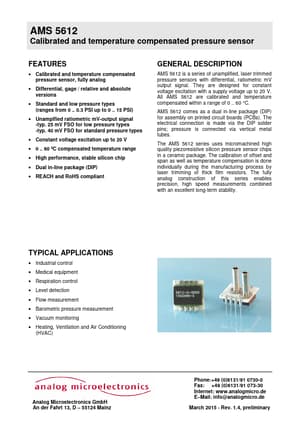

📥 Download Datasheet  Datasheet Preview Page 1

Description

AMS 5612 Calibrated and temperature compensated pressure sensor .
AMS 5612 is a series of unamplified, laser trimmed pressure sensors with differential, ratiometric mV output signal.

📥 Download Datasheet

Preview of AMS5612 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AMS5612
Manufacturer
Analog Microelectronics
File Size
278.23 KB
Datasheet
AMS5612-AnalogMicroelectronics.pdf
Description
Calibrated and temperature compensated pressure sensor

Features

* Calibrated and temperature compensated pressure sensor, fully analog
* Differential, gage / relative and absolute versions
* Standard and low pressure types (ranges from 0 . . 0.3 PSI up to 0 . . 15 PSI)
* Unamplfied ratiometric mV-output signal -typ. 25 mV FSO for lo

Applications

* Industrial control
* Medical equipment
* Respiration control
* Level detection
* Flow measurement
* Barometric pressure measurement
* Vacuum monitoring
* Heating, Ventilation and Air Conditioning (HVAC) Analog Microelectronics GmbH An
