AMS5812 - Amplified pressure sensor

AMS5812 Description

AMS 5812 Amplified pressure sensor with analog and digital output (I²C) .
AMS 5812 pressure sensors are a series of highprecision OEM sensors with an analog 0. 4.

AMS5812 Features

* Amplified, calibrated and temperature compensated pressure sensor
* Differential/relative, bidirectional differential, absolute and barometric versions
* Ratiometric analog voltage output of 0.5
* 4.5V
* Digital output for pressure and temperature via I2C in

AMS5812 Applications

* and pressure ranges: differential (relative) devices in pressure ranges from 0
* 0.075 PSI up to 0
* 100 PSI, absolute pressure variants for 0
* 15 PSI, 0 - 30 PSI and a barometric type. Bidirectional differential devices are available from -0.075 /+ 0.075 PSI up to -15/ +15

📥 Download Datasheet

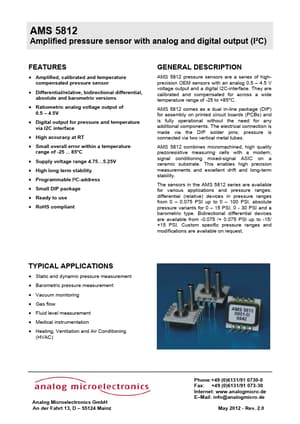

Preview of AMS5812 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMS5812
Manufacturer
Analog Microelectronics
File Size
295.88 KB
Datasheet
AMS5812-AnalogMicroelectronics.pdf
Description
Amplified pressure sensor
