AM1400NE - N-Channel 150-V (D-S) MOSFET

AM1400NE Description

Analog Power AM1400NE N-Channel 150-V (D-S) MOSFET Key .

AM1400NE Features

* Low rDS(on) trench technology
* Low thermal impedance

AM1400NE Applications

* White LED boost converters
* Automotive Systems
* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 1100 @ VGS = 10V 1200 @ VGS = 4.5V VDS (V) 150 ID(A) 1 0.9 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit VDS Drain-So

📥 Download Datasheet

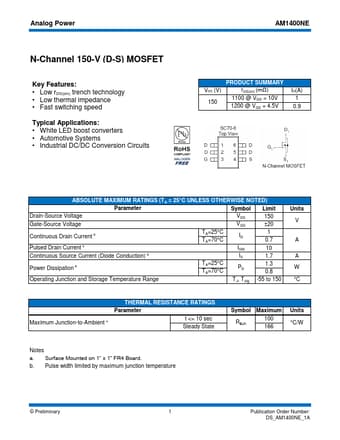

Preview of AM1400NE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM1400NE
Manufacturer
Analog Power
File Size
518.43 KB
Datasheet
AM1400NE_AnalogPower.pdf
Description
N-Channel 150-V (D-S) MOSFET
