Am1402A Datasheet - AMD

Am1402A - 1024-Bit Dynamic Shift Registers

The Am1402A, 3A, and 4A are 1024-bit silicon gate dynamic shift registers.

The low threshold characteristics of this technology allow high-speed operation and DTL and TTL compatibility.

The Am1402A is a quad 256-bit device; the Am1403A is a dual 512-bit register; and the Am1404A is a single 1024-b

Am1402A/Am1403A/Am1404A Am2802/Am2803/Am2804 1024-Bit Dynamic Shift Registers Distinctive Characteristics Quad 2S6-bit, dual S12-bit, single 1024-bit 10 MHz frequency operation guaranteed for Am2802, Am2803 and Am2804.

Low power dissipation of 0.1 mW/bit at 1 MHz DTL and TTL compatible Both military and commercial grade devices available 100%reliabilifyassurance testing in compliance with MI L-STO-883.

Electrically tested an

Am1402A-AMD.pdf

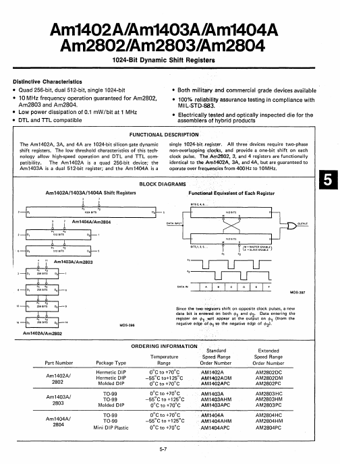

Preview of Am1402A PDF
Am1402A Datasheet Preview Page 2 Am1402A Datasheet Preview Page 3

Datasheet Details

Part number:

Am1402A

Manufacturer:

AMD

File Size:

248.47 KB

Description:

1024-bit dynamic shift registers.
