SSM2019, Self-Contained Audio Preamplifier

a Self-Contained Audio Preamplifier SSM2019 .
The SSM2019 is a latest generation audio preamplifier, combining SSM preamplifier design expertise with advanced processing.

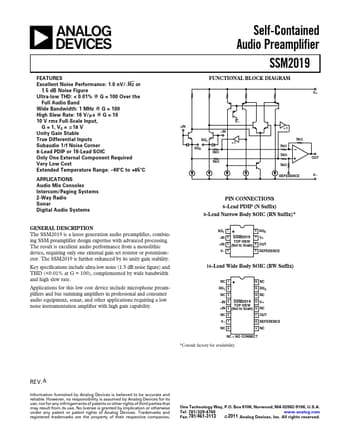

datasheet Preview Page 1 from Datasheet4u.com

SSM2019_Analog.pdf

SSM2019 Datasheet Preview — Preview of SSM2019 PDF

Datasheet Details

Part number:

SSM2019

Manufacturer:

Analog

File Size:

197.37 KB

Description:

Self-Contained Audio Preamplifier

Features

* Excellent Noise Performance: 1.0 nV/÷Hz or 1.5 dB Noise Figure Ultra-low THD: < 0.01% @ G = 100 Over the Full Audio Band Wide Bandwidth: 1 MHz @ G = 100 High Slew Rate: 16 V/␮s @ G = 10 10 V rms Full-Scale Input, G = 1, VS = ؎18 V Unity Gain Stable True Differential Inputs Subaudio 1/f Noise Corner

Applications

* Audio Mix Consoles Intercom/Paging Systems 2-Way Radio Sonar Digital Audio Systems FUNCTIONAL BLOCK DIAGRAM V+ V
* +IN
* IN RG1 ؋1 RG2 5k⍀ 5k⍀ ؋1 5k⍀ 5k⍀ 5k⍀ 5k⍀ REFERENCE OUT V
* PIN CONNECTIONS 8-Lead PDIP (N Suffix) 8-Lead Narrow Body SOIC (RN Suffix)
* GENER
