CSA230 - Current-Sense Amplifier

📥 Download Datasheet

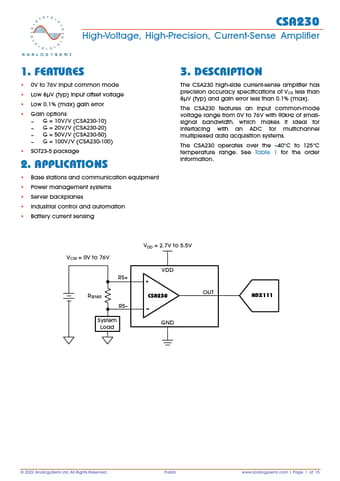

CSA230 Datasheet Preview — Preview of CSA230 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CSA230
Manufacturer: AnalogySemi
File Size: 593.50 KB
Datasheet: CSA230-AnalogySemi.pdf
Description: Current-Sense Amplifier

CSA230 Product details

Description

The CSA230 high-side current-sense amplifier has precision accuracy specifications of VOS less than 8μV (typ) and gain error less than 0.1% (max).

Features

0V to 76V input common mode.
Low 8μV (typ) input offset voltage.
Low 0.1% (max) gain error.
Gain options G = 10V/V (CSA230-10) G = 20V/V (CSA230-20) G = 50V/V (CSA230-50) G = 100V/V (CSA230-100).
SOT23-5 package 2.
