BD1722N5050AHF - Ultra Low Profile 0404 Balun

BD1722N5050AHF Description

Model BD1722N5050AHF Rev A Ultra Low Profile 0404 Balun 50Ω to 50Ω Balanced .
The BD1722N5050AHF is a low profile, low impedance sub-miniature unbalanced to balanced transformer targeted at the GSM, CDMA, WCDMA and UMTS designed.

BD1722N5050AHF Features

* 1700

BD1722N5050AHF Applications

* Surface Mountable Tape & Reel Non-conductive Top Surface RoHS Compliant Halogen Free Parameter Frequency Unbalanced Port Impedance Balanced Port Impedance Return Loss Insertion Loss
* Amplitude Balance Phase Balance CMRR Power Handling Operating Temperature Min. 1700 ROOM (25°C) Typ. 50 50 16.3

📥 Download Datasheet

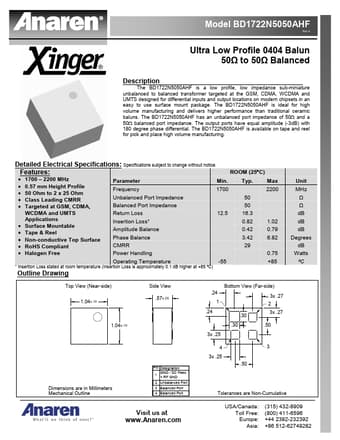

Preview of BD1722N5050AHF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD1722N5050AHF
Manufacturer
Anaren Microwave
File Size
3.25 MB
Datasheet
BD1722N5050AHF-AnarenMicrowave.pdf
Description
Ultra Low Profile 0404 Balun
