BD1754HFN - Constant Current LED Driver

BD1754HFN Description

Datasheet Constant Current LED Driver with 64 Dimming Steps for up to 4 LEDs BD1754HFN General .
BD1754HFN is a multi-level brightness control LED Driver that works as a constant current driver with 64 steps, so that the driving current can be adj.

BD1754HFN Features

* Current Regulation for up to 4 Parallel LEDs
* Adjustable Constant Current with 64 Steps
* High Accuracy and Good Matching of each Current Channel (0.5% Typ)
* Brightness Control Via Single-Line Digital Control Interface (Uni-Port Interface Control = UPIC) Key Specification

BD1754HFN Applications

* This driver can be used in various applications such as mobile phones, portable game consoles and etc. HSON8 2.90mm x 3.00mm x 0.60mm Typical

📥 Download Datasheet

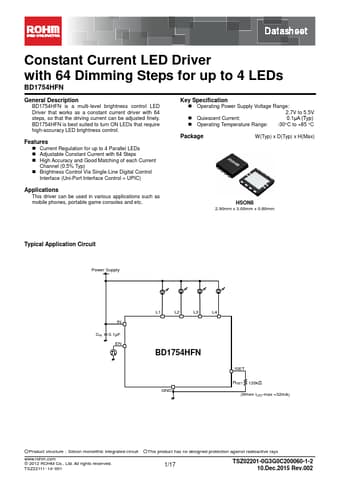

Preview of BD1754HFN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD1754HFN
Manufacturer
ROHM ↗
File Size
921.71 KB
Datasheet
BD1754HFN-ROHM.pdf
Description
Constant Current LED Driver
