C150N50Z4 Datasheet - Anaren Microwave

Surface Mount Termination

C150N50Z4 Features

* RoHS Compliant

* 150 Watts

* DC

* 4.0 GHz

* AlN Ceramic

* Non-Nichrome Resistive Element

* Low VSWR

* 100% Tested

* Small Size General Specifications Resistive Element Substrate Terminal Finish Operating Temperature Thick fi

C150N50Z4 General Description

The C150N50Z4 is high performance Aluminum Nitride (AlN) surface mount termination intended as a cost competitive alternative to Beryllium Oxide (BeO). The termination is well suited to all cellular frequency bands such as; AMPS, GSM, DCS, PCS, PHS and UMTS. The high power handling makes the part id.

C150N50Z4 Datasheet (182.62 KB)

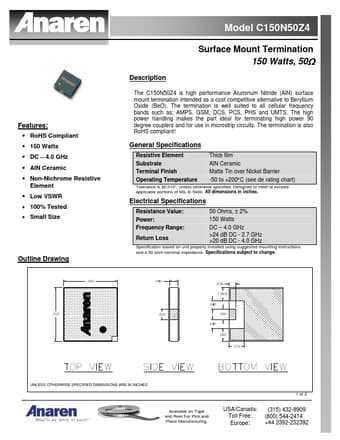

C150N50Z4 Datasheet Preview — Preview of C150N50Z4 PDF

Datasheet Details

Part number:

C150N50Z4

Manufacturer:

Anaren Microwave

File Size:

182.62 KB

Description:

Surface mount termination.
