C1510A-DFB, C1510-DFB Datasheet - Luminent OIC

C1510A-DFB Laser Diode

1.27um-1.61um MQW-DFB Laser Diodes for CWDM C-1XXXA-DFB-E-XX-NT Absolute Maximum Rating (Tc=25ºC) Parameter Optical Output Power LD Reverse Voltage LD Forward Current PD Reverse Voltage PD Forward Current Operating Temperature Storage Temperature Symbol Po VRLD IFLD VRPD IFPD Topr Tstg Value 8(CW) 2 150 15 2 0 to +70 -40 to +85 Unit mW V mA V mA ºC ºC Optical and Electrical Characteristics( Tc=70ºC ) Parameter Threshold Current Optical Output Power Symbol Ith Po Min 6 Typical 8 Max 50.

C1510-DFB_LuminentOIC.pdf

This datasheet PDF includes multiple part numbers: C1510A-DFB, C1510-DFB. Please refer to the document for exact specifications by model.

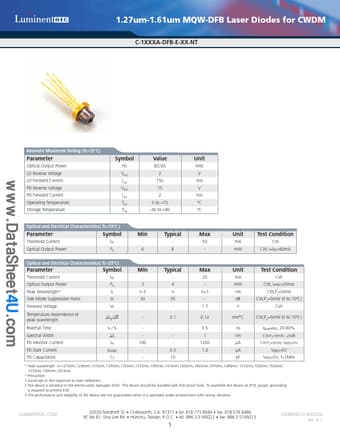

C1510A-DFB Datasheet Preview Page 2 C1510A-DFB Datasheet Preview Page 3

Datasheet Details

Part number:

C1510A-DFB, C1510-DFB

Manufacturer:

Luminent OIC

File Size:

1.05 MB

Description:

Laser diode.

Note:

This datasheet PDF includes multiple part numbers: C1510A-DFB, C1510-DFB.
Please refer to the document for exact specifications by model.
