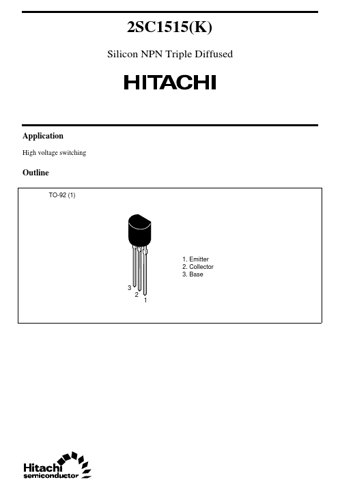

2SC1515(K) Silicon NPN Triple Diffused Application High voltage switching Outline TO-92 (1) 3 2 1 1.

Emitter 2.

Collector 3.

Base 2SC1515 (K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCES VCEO VEBO IC PC Tj Tstg Ratings 200 200 150 5 50 200 150 55 to +150 Unit V V V V mA mW °C °C Electrical Characteri

C1515-HitachiSemiconductor.pdf

This datasheet PDF includes multiple part numbers: C1515K, C1515. Please refer to the document for exact specifications by model.
C1515K Datasheet Preview Page 2 C1515K Datasheet Preview Page 3

Datasheet Details

Part number:

C1515K, C1515

Manufacturer:

Hitachi Semiconductor

File Size:

27.36 KB

Description:

2sc1515k.

Note:

This datasheet PDF includes multiple part numbers: C1515K, C1515.
Please refer to the document for exact specifications by model.
