C1515 2SC1515

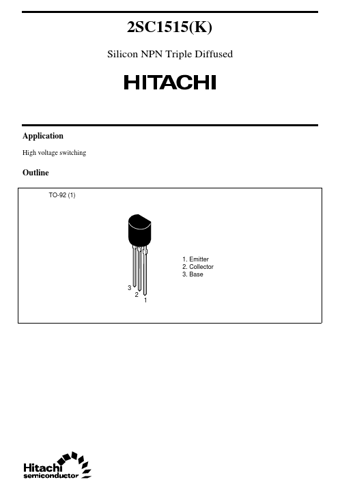

2SC1515(K) Silicon NPN Triple Diffused Application High voltage switching Outline TO-92 (1) 3 2 1 1. Emitter 2. Collector 3. Base 2SC1515 (K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCES VCEO VEBO IC PC Tj Tstg Ratings 200 200 150 5 50 200 150 55 to +150 Unit V V V V mA mW °C °C Electrical Characteri.
