APL5101

Quiescent Current Regulator

APL5101 Features

* Ultra Low Quiescent Current: 4µA

* Ultra Low Dropout Voltage: 200mV@3.3V/150mA

* Fixed Output Voltages: 1.2V~3.5V, Steps 100mV

* Guaranteed 150mA Output Current

* Stable with 1µF Output Capacitor

* Ceramic Capacitor can be used

* Current-Limi

APL5101 General Description

The APL5101/2 are micro-power and ultra low dropout linear regulators, which operate from 2V to 6V input voltage and deliver up to 150mA. Typical dropout voltage is only 200mV at 150mA loading. Designed for use in battery-powered system, the low 4µA quiescent current makes it an ideal choice. Design.

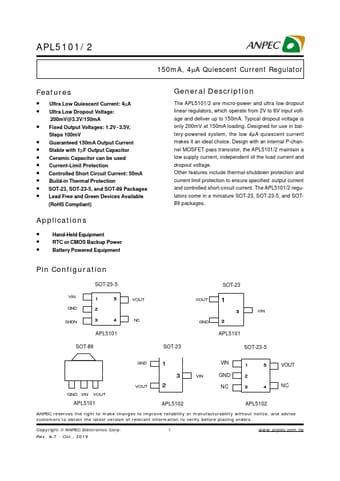

APL5101 Datasheet (196.50 KB)

Preview of APL5101 PDF

Datasheet Details

Part number:

APL5101

Manufacturer:

Anpec Electronics

File Size:

196.50 KB

Description:

Quiescent current regulator.
