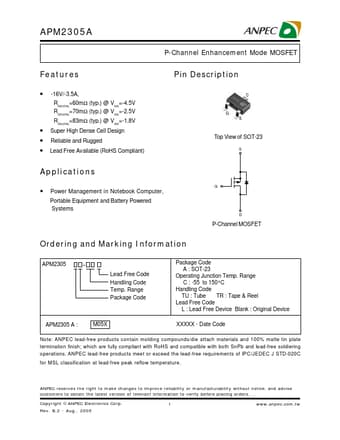

APM2305A Datasheet, Mosfet, Anpec Electronics

APM2305A Features

• Mosfet
• -16V/-3.5A, RDS(ON)=60mΩ (typ.) @ VGS=-4.5V RDS(ON)=70mΩ (typ.) @ V =-2.5V GS RDS(ON)=83mΩ (typ.) @ V =-1.8V GS
• Super High Dense Cell Design
• Re

PDF File Details

Part number:

APM2305A

Manufacturer:

Anpec Electronics

File Size:

177.05kb

Download:

📄 Datasheet

Description:

P-channel mosfet. Top View of SOT-23 S Applications

Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems G

APM2305A Application

• Applications
• Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems G D P-Channel MOSFET Ordering and Mar
