RC242001 24-Characters x 2-Lines Display

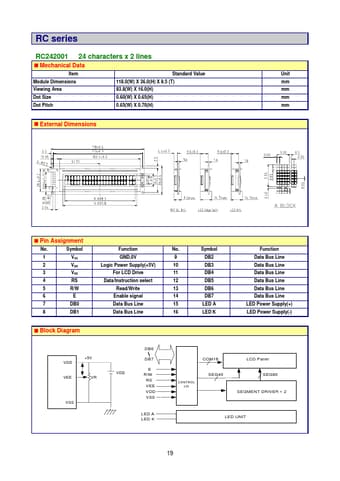

RC series RC242001 Item Module Dimensions Viewing Area Dot Size Dot Pitch 24 characters x 2 lines Standard Value 118.0(W) X 36.0(H) X 9.5 (T) 93.8(W) X 16.0(H) 0.60(W) X 0.65(H) 0.65(W) X 0.70(H) Unit mm mm mm mm Mechanical Data External Dimensions Pin Assignment No. 1 2 3 4 5 6 7 8 Symbol VSS VDD VEE RS R/W E DB0 DB1 Function GND,0V Logic Power Supply(+5V) For LCD Drive Data/Instruction select Read/Write Enable signal Data Bus Line Data Bus Line No. 9 10 11 12 .

RC242001_ApexScience.pdf

RC242001 Datasheet Preview — Preview of RC242001 PDF

Datasheet Details

Part number:

RC242001

Manufacturer:

Apex Science

File Size:

44.74 KB

Description:

24-characters x 2-lines display.
