AF24BC01, 2-wire Serial EEPROM

2-wire Serial EEPROM 1K/2K/4K/8K/16K AF24BC01/02/04/08/16 (preliminary) .
Aplus Flash Technology’s AF24BC family provides 1K, 2K, 4K, 8K, and 16K of serial electrically erasable and programmable read-only memory (EEPROM).

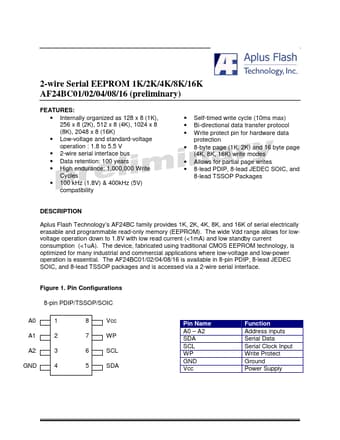

datasheet Preview Page 1 from Datasheet4u.com

AF24BC01-AplusFlashTechnology.pdf

AF24BC01 Datasheet Preview — Preview of AF24BC01 PDF

Datasheet Details

Part number:

AF24BC01

Manufacturer:

Aplus Flash Technology

File Size:

129.58 KB

Description:

2-wire Serial EEPROM

Features

* Internally organized as 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K), 2048 x 8 (16K)
* Low-voltage and standard-voltage operation : 1.8 to 5.5 V
* 2-wire serial interface bus
* Data retention: 100 years
* High endurance: 1,000,000 Write Cycles
