AF93BC86 Datasheet - Aplus Flash Technology

AF93BC86, 3-wire Serial EEPROM

3-wire Serial EEPROMs 16K AF93BC86 .
2 MHz (5V) clock rate. Sequential read operation. Self-timed write cycle (10ms max). Lead free package.

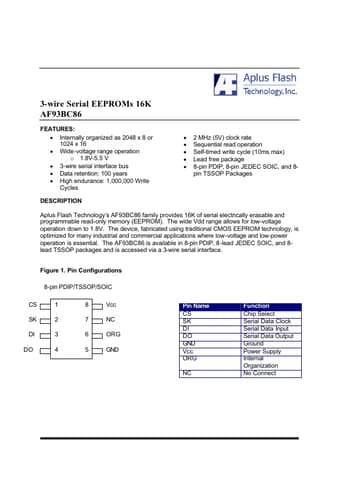

datasheet Preview Page 1 from Datasheet4u.com

AF93BC86-AplusFlashTechnology.pdf

AF93BC86 Datasheet Preview — Preview of AF93BC86 PDF

Datasheet Details

Part number:

AF93BC86

Manufacturer:

Aplus Flash Technology

File Size:

161.19 KB

Description:

3-wire Serial EEPROM

Features

* Internally organized as 2048 x 8 or 1024 x 16
* Wide-voltage range operation o 1.8V-5.5 V
* 3-wire serial interface bus
* Data retention: 100 years

Applications

* where low-voltage and low-power operation is essential. The AF93BC86 is available in 8-pin PDIP, 8-lead JEDEC SOIC, and 8lead TSSOP packages and is accessed via a 3-wire serial interface. Figure 1. Pin Configurations 8-pin PDIP/TSSOP/SOIC
