DDX-2120, DDX-2160, (DDX-21xx) All-Digital High Efficiency Power Amplifiers

DDX-2160/DDX-2120/DDX-2100 www.DataSheet4U.com All-Digital High Efficiency Power Amplifiers .
The DDX-2160, DDX-2120 and DDX-2100 power devices are monolithic, dual channel H-Bridges that can provide audio power up to:.

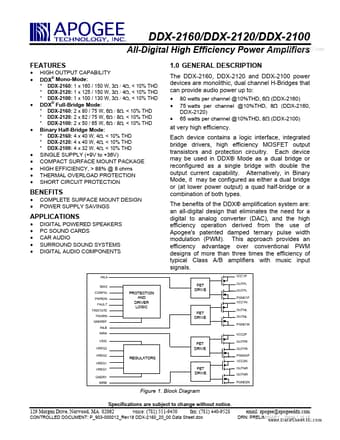

datasheet Preview Page 1 from Datasheet4u.com

DDX-2160_ApogeeTechnology.pdf

DDX-2120 Datasheet Preview — This datasheet PDF includes multiple part numbers: DDX-2120, DDX-2160. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DDX-2120, DDX-2160

Manufacturer:

Apogee Technology

File Size:

575.08 KB

Description:

(DDX-21xx) All-Digital High Efficiency Power Amplifiers

Note:

This datasheet PDF includes multiple part numbers: DDX-2120, DDX-2160.
Please refer to the document for exact specifications by model.

Features

* HIGH OUTPUT CAPABILITY DDX® Mono-Mode:

Applications

* INLA BIAS CONFIG PWRDN FAULT TRISTATE TWARN GNDREF INLB INRA VSIG VREG2 VREG2 VREG1 VREG1 GNDR1 INRB PROTECTION AND DRIVER LOGIC FET DRIVE OUTPL OUTPL PGND1P VCC1N FET DRIVE OUTNL OUTNL PGND1N VCC2P FET DRIVE REGULATORS FET DRIVE OUTPR OUTPR PGND2P VCC2N OUTNR OUTNR PGND2N Figure 1. Block D
