DDX-2160 (DDX-21xx) All-Digital High Efficiency Power Amplifiers

DDX-2160 Description

DDX-2160/DDX-2120/DDX-2100 www.DataSheet4U.com All-Digital High Efficiency Power Amplifiers .
The DDX-2160, DDX-2120 and DDX-2100 power devices are monolithic, dual channel H-Bridges that can provide audio power up to:.

DDX-2160 Features

* HIGH OUTPUT CAPABILITY DDX® Mono-Mode:

DDX-2160 Applications

* INLA BIAS CONFIG PWRDN FAULT TRISTATE TWARN GNDREF INLB INRA VSIG VREG2 VREG2 VREG1 VREG1 GNDR1 INRB PROTECTION AND DRIVER LOGIC FET DRIVE OUTPL OUTPL PGND1P VCC1N FET DRIVE OUTNL OUTNL PGND1N VCC2P FET DRIVE REGULATORS FET DRIVE OUTPR OUTPR PGND2P VCC2N OUTNR OUTNR PGND2N Figure 1. Block D

📥 Download Datasheet

Preview of DDX-2160 PDF

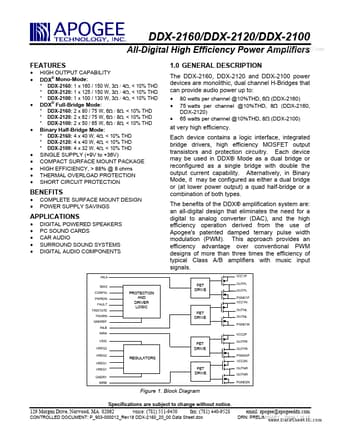

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDX-2160
Manufacturer
Apogee Technology
File Size
575.08 KB
Datasheet
DDX-2160_ApogeeTechnology.pdf
Description
(DDX-21xx) All-Digital High Efficiency Power Amplifiers
