S19235PB11 Datasheet - Applied Micro Circuits

S19235PB11 - 16-Bit Transceiver

The S19235 SONET/SDH/FEC and 10 Gigabit Ethernet (GbE) transceiver is one of the latest additions to AMCC’s SuperPHYTM product family.

The S19235 device provides fully integrated serialization/de-serialization capabilities for low power Intermediate and long Reach OC-192 applications.

The device per

( DataSheet : www.DataSheet4U.com ) S19235 OC-192 SONET/SDH/FEC/GbE 16-bit Transceiver and the serial receive interface.

The system timing circuitry consists of a highspeed phase detector, clock dividers, and clock distribution.

The device utilizes on-chip clock synthesis PLL components that allow the use of a slower external clock reference, 155.52 MHz or 622.08 MHz (or equivalent FEC/10GbE rate), in support of existing system clocking schemes.

The low-jitter, 16-bit, Low Voltage Differential

S19235PB11 Features

* Operational from 9.953 Gbps to 11.1 Gbps

* Low Power (1100 mW Typical)

* 1.2 V and 1.8/2.5/3.3 V Power Supply

* Built-In Self Test (BIST) Feature with error counter

* On-chip High-Frequency PLL for Clock Generation and Clock Recovery

* 16-bit LVDS Pa

S19235PB11_AppliedMicroCircuits.pdf

Preview of S19235PB11 PDF

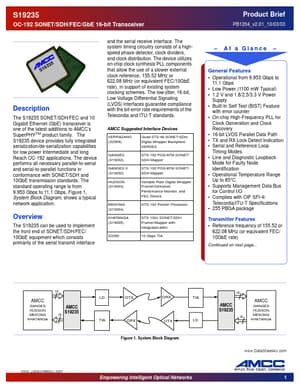

S19235PB11 Datasheet Preview Page 2

Datasheet Details

Part number:

S19235PB11

Manufacturer:

Applied Micro Circuits

File Size:

141.14 KB

Description:

16-bit transceiver.
