S190PGC-2A

0603 Package Yellow Green Chip LED

S190PGC-2A Features

* Package in 8mm tape on 7” diameter reel. Compatible with automatic placement equipment. Compatible with infrared and vapor phase reflow solder process. Mono-color type. The product itself will remain within RoHS compliant Version. Descriptions: The S190P SMD LED is much smaller than lead frame type

S190PGC-2A General Description

: The S190P SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications, etc. Applications: Automotive: Backlighti.

S190PGC-2A Datasheet (98.15 KB)

Preview of S190PGC-2A PDF

Datasheet Details

Part number:

S190PGC-2A

Manufacturer:

Luckylight

File Size:

98.15 KB

Description:

0603 package yellow green chip led.

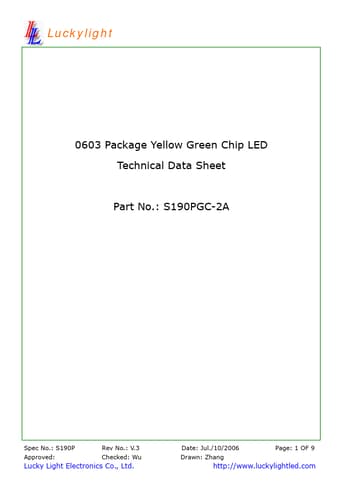

Luckylight 0603 Package Yellow Green Chip LED Technical Data Sheet Part No.: S190PGC-2A Spec No.: S190P Rev No.: V.3 Approved: Checked: Wu Lucky .
