AP0100CS - High-Dynamic Range (HDR) Image Signal Processor

Datasheet Summary

Description

100-ball VFBGA Package Part Samples 100-ball VFBGA Package Part AP0100CS demo kit AP0100CS headboard Table 2: Key Performance Parameters Parameter Primary camera interfaces Primary camera input Output interface Output format Maximum resolution NTSC output PAL output Input clock range Supply volta

Features

  • AP0100CS High-Dynamic Range (HDR) Image Signal Processor (ISP) AP0100CS Data Sheet For the latest product data sheet revision, refer to Aptina’s Web site:www. aptina. com Features.
  • Up to 1.2Mp (1280x960) Aptina sensor support.
  • 45 fps at 1.2Mp, 60 fps at 720p.
  • Optimized for operation with HDR sensors.
  • Color and gamma correction.
  • Auto exposure, auto white balance, 50/60 Hz auto flicker detection and avoidance.
  • Adaptive Local Tone Mapping (ALT.

📥 Download Datasheet

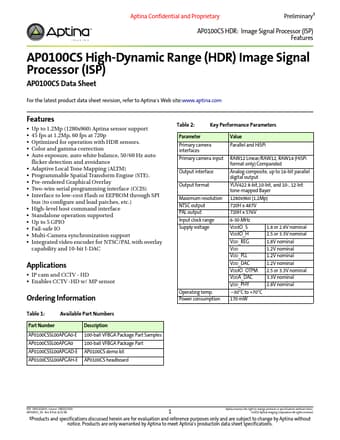

Datasheet preview – AP0100CS

Datasheet Details

Part number AP0100CS
Manufacturer Aptina
File Size 2.91 MB
Description High-Dynamic Range (HDR) Image Signal Processor
Datasheet download datasheet AP0100CS Datasheet
Additional preview pages of the AP0100CS datasheet.

📁 Similar Datasheet

  • AP0100CS - High-Dynamic Range (HDR) Image Signal Processor (ON Semiconductor)
  • AP0101CS - High-Dynamic Range (HDR) Image Signal Processor (ON Semiconductor)
  • AP0103GMT-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP0103GP-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP01 - 8 Channel Power MOSFET (Supertex Inc)
  • AP0116 - 8 Channel Power MOSFET (Supertex Inc)
  • AP0116NA - 8 Channel Power MOSFET (Supertex Inc)
  • AP0116NB - 8 Channel Power MOSFET (Supertex Inc)
  • AP0116ND - 8 Channel Power MOSFET (Supertex Inc)
  • AP0116WG - 8 Channel Power MOSFET (Supertex Inc)
Other Datasheets by Aptina
  • AP0101 - High-Dynamic Range (HDR) Image Signal Processor

Full PDF Text Transcription

Click to expand full text
Aptina Confidential and Proprietary Preliminary‡ AP0100CS HDR: Image Signal Processor (ISP) Features AP0100CS High-Dynamic Range (HDR) Image Signal Processor (ISP) AP0100CS Data Sheet For the latest product data sheet revision, refer to Aptina’s Web site:www.aptina.com Features • Up to 1.2Mp (1280x960) Aptina sensor support • 45 fps at 1.2Mp, 60 fps at 720p • Optimized for operation with HDR sensors. • Color and gamma correction • Auto exposure, auto white balance, 50/60 Hz auto flicker detection and avoidance • Adaptive Local Tone Mapping (ALTM) • Programmable Spatial Transform Engine (STE). • Pre-rendered Graphical Overlay • Two-wire serial programming interface (CCIS) • Interface to low-cost Flash or EEPROM through SPI bus (to configure and load patches, etc.
