AP0101 - High-Dynamic Range (HDR) Image Signal Processor

Aptina

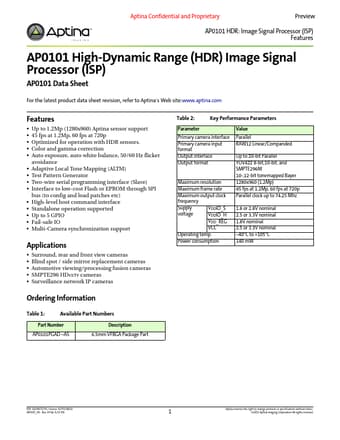

AP0101 Datasheet Preview — Preview of AP0101 PDF

Datasheet Details

Part number	AP0101
Manufacturer	Aptina
File Size	709.45 KB
Description	High-Dynamic Range (HDR) Image Signal Processor
Datasheet	AP0101-Aptina.pdf

AP0101 Product details

Description

6.5mm VFBGA Package Part Table 2: Key Performance Parameters Parameter Primary camera interface Primary camera input format Output interface Output format Maximum resolution Maximum frame rate Maximum output clock frequency Supply VDDIO_S voltage VDDIO_H VDD_REG VCC Operating temp.Power consumption Value Parallel RAW12 Linear/Companded Up to 20-bit Parallel YUV422 8-bit,10-bit, and SMPTE296M 10-,12-bit tonemapped Bayer 1280x960 (1.2Mp) 45 fps at 1.2Mp, 60 fps at 720p Parallel cl

Features

AP0101 High-Dynamic Range (HDR) Image Signal Processor (ISP) AP0101 Data Sheet For the latest product data sheet revision, refer to Aptina’s Web site:www. aptina. com Features.
Up to 1.2Mp (1280x960) Aptina sensor support.
45 fps at 1.2Mp, 60 fps at 720p.
Optimized for operation with HDR sensors.
Color and gamma correction.
Auto exposure, auto white balance, 50/60 Hz flicker avoidance.
Adaptive Local Tone Mapping (ALTM).
Test Patte.
