AU1564A single chip voice synthesizer with 4-bit microprocessor

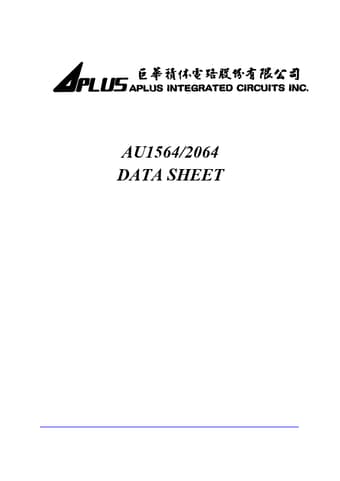

AU1564/2064 DATA SHEET AU Series ㆒: AU1564, AU1564A, AU2064, AU2064A ㆒4-bit ,LOGPCM,15, 20。4-bit4-bit ALU ( )、1K*15 bits ROM、64*4bits RAM, I/O PORT、、、LCD ,78;㆗ Halt function () 。 : 1. ㆒2.4 - 6 。 2. 15, 20, 64(section)。 (AU1564, AU1564A >15 ; AU2064, AU2064A >20) 3. .。 4. 8,64.。 5. 3× 24=72()LCD,HALVER.。 6. 。 7. ROM:1024*15bits。RAM:64*4bits。 8. 24 bits。(㆗ AU1564, AU1564A S4 pad ) 9. 24 bits/。 10. ㆒4bits。 11. ㆒。 12. 78。 13. 4。 14. 2㆗ (INT, S&M port)。 15. 2㆗ (Timer, Divider)。 1.

AU1564A Features

* 1. Single power supply can operate from 2.4V through 6V 2. The total voice duration is about 15, 20 seconds could be partitioned up to 64 sections (AU1564, AU1564A

* >15 seconds, AU2064, AU2064A

* >20 seconds) 3. The voice can be triggered by microprocessor instructions 4. Current out

AU1-564.pdf

This datasheet PDF includes multiple part numbers: AU1564A, AU1. Please refer to the document for exact specifications by model.
AU1564A Datasheet Preview Page 2 AU1564A Datasheet Preview Page 3

Datasheet Details

Part number:

AU1564A, AU1

Manufacturer:

Apuls Intergrated Circuits

File Size:

1.19 MB

Description:

Single chip voice synthesizer with 4-bit microprocessor.

Note:

This datasheet PDF includes multiple part numbers: AU1564A, AU1.
Please refer to the document for exact specifications by model.
