AU12, AU11 Datasheet - AMI

AU12 - CMOS Gate Array

AU1x is a family of combinational one-bit full adders.

Logic Symbol AU1x CI CO A S B Truth Table CI A B S CO LLLLL L LHHL LHLHL L HH L H HL LHL HLHLH HHL LH HHHHH HDL Syntax Verilog AU1x inst_name (CO, S, A, B, CI); VHDL inst_name: AU1x port map (CO, S, A, B, CI); Pin Loading Pin Name A B CI E

AU11-AMI.pdf

This datasheet PDF includes multiple part numbers: AU12, AU11. Please refer to the document for exact specifications by model.

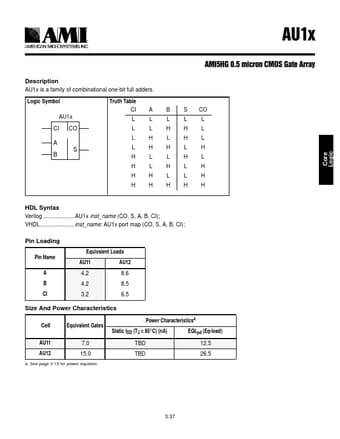

AU12 Datasheet Preview Page 2 AU12 Datasheet Preview Page 3

Datasheet Details

Part number:

AU12, AU11

Manufacturer:

AMI

File Size:

33.46 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: AU12, AU11.
Please refer to the document for exact specifications by model.
