AV1416K

single-chip voice synthesizing CMOS IC

AV1416K Features

* (1). Single power supply can operate from 2.4V to 6.4V (in this range, user can set Rosc as a fixed value). (2). The total voice duration is about 3.5, 7, 14, 21, 28 and 42 seconds those can be partitioned up to 32 voice_sections. Each voice_section length is flexible. Besides, there are addition

AV1416K General Description

The AVH316K , AV0716K , AV1416K , AV2116K , AV2816K and AV4216K are single-chip voice synthesizing CMOS IC. They are low cost with proper functions and can synthesize voice up to 3.5, 7, 14, 21, 28 and 42 seconds, using Aplus 5-bit LOGPCM algorithm. oCmuts er speech data can be programmed into ROM .

AV1416K Datasheet (364.49 KB)

Preview of AV1416K PDF

Datasheet Details

Part number:

AV1416K

Manufacturer:

Apuls Intergrated Circuits

File Size:

364.49 KB

Description:

Single-chip voice synthesizing cmos ic.

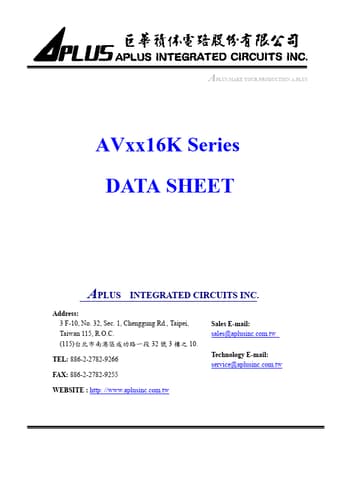

APLUS MAKE YOUR PRODUCTION A-PLUS AVxx16K Series DATA SHEET APLUS INTEGRATED CIRCUITS INC. Address: 3 F-10, No. 32, Sec. 1, Chenggung Rd., Taipei, T.
