AV10-24S05

10W Single Output

AV10-24S05 Features

* Small size and low profile: 2.0" x 1.0" x 0.35" (50.8 x 25.4 x 9.0mm )

* Industry standard footprint

* High efficiency: 82%

* 2:1 wide input voltage of 18-36V, 36-72V

* Isolated output: 3.3V, 5V, 5.2V, 8V, 12V, 15V, 96V Line Regulation Load Regulation Ripple

AV10-24S05 Datasheet (203.02 KB)

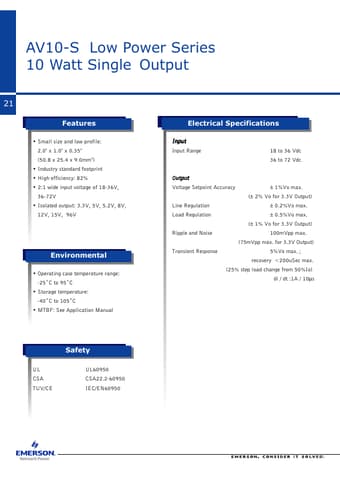

Preview of AV10-24S05 PDF

Datasheet Details

Part number:

AV10-24S05

Manufacturer:

Emerson

File Size:

203.02 KB

Description:

10w single output.
