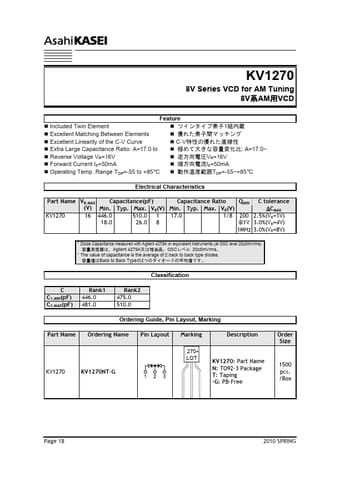

KV1270 8V Series VCD for AM Tuning 8VAMVCD Feature „ Included Twin Element „ 1 „ Excellent Matching Between Elements „ „ Excellent Linearity of the C-V Curve „ C-V „ Extra Large Capacitance Ratio: A=17.0 to „ : A=17.0~ „ Reverse Voltage VR=16V „ Forward Current IF=50mA „ Operating Temp. Range TOP=-55 to +85°C „ VR=16V „ IF=50mA „ TOP=-55~+85°C Electrical Characteristics Part Name KV1270 VR.MAX Capacitance(pF) (V) Min. Typ. Max. VR(V) 16 446.0 510.0 1 18.0 26.0 8 Capacitance Ratio QMIN C tolerance Min. Typ. Max. VR(V) ΔCMAX 17.0 1/8 200 2.5%(VR=1V) @1V 3.0%(VR=4V) 1MHz 3.
