AK4114 Datasheet - Asahi Kasei Microsystems

High Feature 192kHz 24-bit Digital Audio Interface Transceiver

AK4114 Features

* † AES3, IEC60958, S/PDIF, EIAJ CP1201 Compatible † Low jitter Analog PLL † PLL Lock Range : 32kHz to 192kHz † Clock Source: PLL or X'tal † 8-channel Receiver input † 2-channel Transmission output (Through output or DIT) † Auxiliary digital input † De-emphasis for 32kHz, 44.1kHz, 48kHz and 96kHz † De

AK4114 General Description

The AK4114 is a digital audio transceiver supporting 192kHz, 24bits. The channel status decoder supports both consumer and professional modes. The AK4114 can automatically detect a Non-PCM bit stream. When combined with the multi channel codec (AK4527B or AK4529), the two chips provide a system solu.

AK4114 Datasheet (447.18 KB)

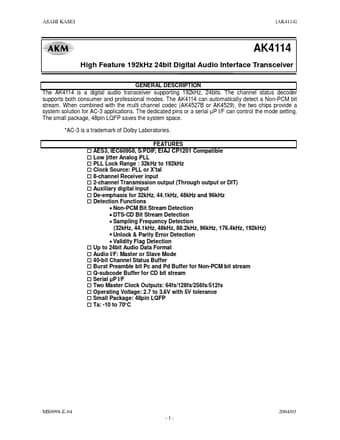

Preview of AK4114 PDF

Datasheet Details

Part number:

AK4114

Manufacturer:

Asahi Kasei Microsystems

File Size:

447.18 KB

Description:

High feature 192khz 24-bit digital audio interface transceiver.
