AK4116 Low Power 48kHz Digital Audio Receiver

The AK4116 is a low power S/PDIF AES/EBU receiver supporting resolution up to 24-bit. The integrated channel status decoder supports both consumer and professional modes. The AK4116 can automatically detect a Non-PCM bit stream. Combining the AK4116 with a multi-channel codec such as AKM’s AK4527B o.

AK4116 Features

* AES3, IEC60958, S/PDIF, EIAJ CP1201 Compatible Low jitter Analog PLL PLL Lock Range : 32kHz to 48kHz Clock Source: PLL or X'tal Auxiliary digital input Detection Functions - Non-PCM Bit Stream Detection - DTS-CD Bit Stream Detection - Sampling Frequency Detection (32kHz, 44.1kHz, 48kHz)

AK4116_AsahiKaseiMicrosystems.pdf

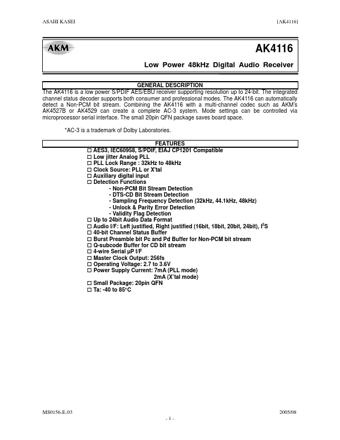

AK4116 Datasheet Preview — Preview of AK4116 PDF

Datasheet Details

Part number:

AK4116

Manufacturer:

Asahi Kasei Microsystems

File Size:

355.04 KB

Description:

Low power 48khz digital audio receiver.
