AK4552 - 3V 96KHZ 24-BIT CODEC

Description

The AK4552 is a low voltage 24bit 96kHz A/D & D/A converter for digital audio system.

In the AK4552, the loss of accuracy form clock jitter is also improved by using SCF techniques for on-chip post filter.

Features

  • † HPF for DC-offset cancel (fc=3.4Hz@fs=44.1kHz) † Single-ended ADC - S/(N+D): 89dB@VA=3.0V - Dynamic Range, S/N: 97dB@VA=3.0V † Single-ended DAC - Digital de-emphasis for 32kHz, 44.1kHz and 48kHz sampling - S/(N+D): 88dB@VA=3.0V - Dynamic Range, S/N: 100dB@VA=3.0V † Audio I/F format: MSB First, 2’s Compliment - ADC: 24bit MSB justified, DAC: 24bit LSB justified † Input/Output Voltage: ADC = 1.85Vpp@VA=3.0V DAC = 1.75Vpp@VA=3.0V † Sampling Rate: 8kHz to 50kHz (Normal Speed) 50kHz to 100kHz (Doub.

📥 Download Datasheet

Datasheet Details

Part number AK4552
Manufacturer Asahi Kasei Microsystems
File Size 117.38 KB
Description 3V 96KHZ 24-BIT CODEC
Datasheet download datasheet AK4552 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AK4558 108dB 216kHz 32-Bit CODEC AKM
AK4503-VF CMOS 16-Bit A/D & D/A Converter ETC
AK4526A High Performance Multi Channel Audio CODEC AKM
AK4527 High Performance Multi Channel Audio CODEC AKM
AK4540 Multimedia Audio CODEC AKM

Other Datasheets by Asahi Kasei Microsystems

Part Number Description
AK4552-A 24bit A/D and D/A converter
AK4550 Low Power & Small Package 16-bit CODEC
AK4551 LOW POWER & SMALL PACKAGE 20-BIT CODEC
AK4554 Low Power & Small Package 16-bit CODEC
AK4555 Low Power & Small Package 20-bit CODEC

Full PDF Text Transcription

Click to expand full text

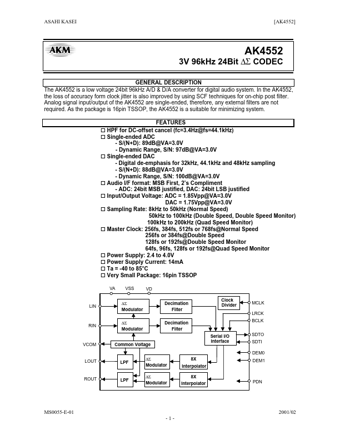

ASAHI KASEI [AK4552] AK4552 3V 96kHz 24Bit ∆Σ CODEC GENERAL DESCRIPTION The AK4552 is a low voltage 24bit 96kHz A/D & D/A converter for digital audio system. In the AK4552, the loss of accuracy form clock jitter is also improved by using SCF techniques for on-chip post filter. Analog signal input/output of the AK4552 are single-ended, therefore, any external filters are not required. As the package is 16pin TSSOP, the AK4552 is a suitable for minimizing system. FEATURES † HPF for DC-offset cancel (fc=3.4Hz@fs=44.1kHz) † Single-ended ADC - S/(N+D): 89dB@VA=3.0V - Dynamic Range, S/N: 97dB@VA=3.0V † Single-ended DAC - Digital de-emphasis for 32kHz, 44.1kHz and 48kHz sampling - S/(N+D): 88dB@VA=3.0V - Dynamic Range, S/N: 100dB@VA=3.
